RU1804
Pico Remote Radio Unit

N77 For Europe Private 5G Network
pRRU N77

Overview

The RU1804 is a pico radio remote Unit of 5G base station, designed for Europe and targeting the N77 frequency band.
  • N77 3.7-4.2GHz
    OBW 500MHz
  • 5G-A to Industry*
    URLLC, Slicing, RedCap
  • Nano-sec Synchronization
    SIB9*, < 200ns precision

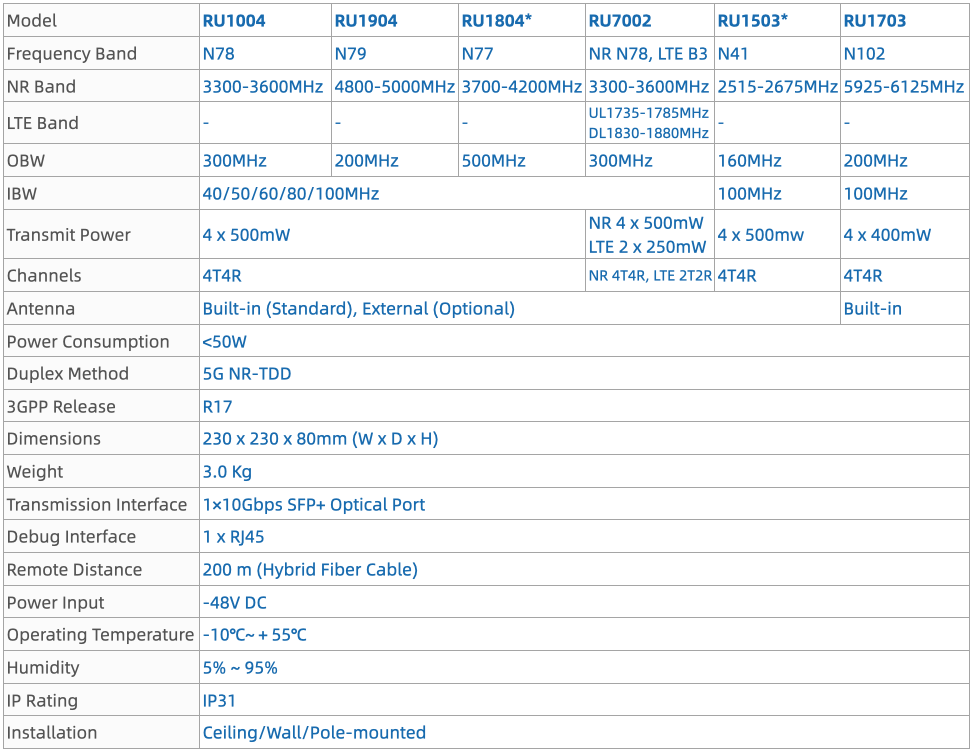

Specification parameters

Frequency Band：N77 3700-4200MHzOperation BandWidth：500MHzInstantaneous BandWidth:100MHz
Duplex Method：5G NR-TDDAntenna：Built-in(Standard), ExternalNumber of Channels:4T4R
Maximum Transmit Power：4 x 500mW (adaptable)Maximum Power Consumption：50WParameter Size:240 x 212 x 58mm
Weight：3.0 KgOptical Port：1 x 10Gbps SFP+ Optical connectorDebug Interface:1 x RJ45
Remote Distance：200m, Optical/electrical hybrid cablesPower Input：DC -48VOperating Temperature:-10℃~＋55℃
Relative Humidity：5% ~ 95%Protection Level：IP31Installation Method:Wall, ceiling or pole mounting

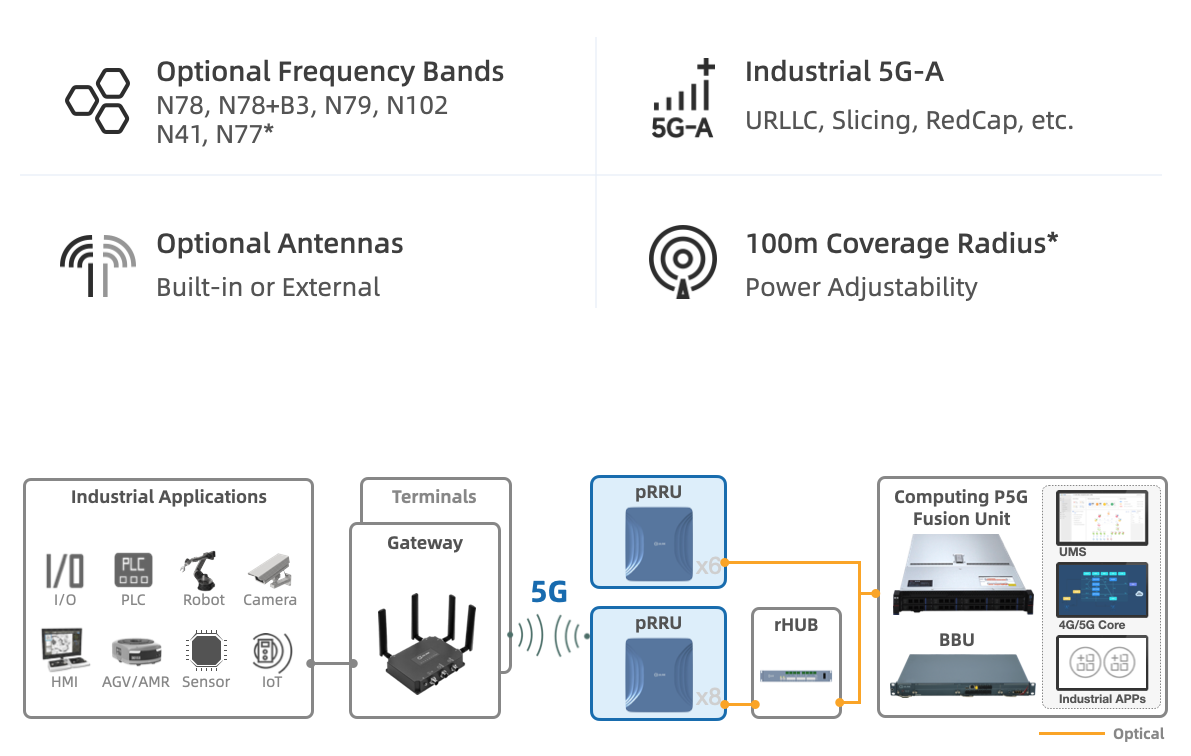

[5G-A to Industry*] & [SIB9*] In conjunction with the entire Private 5G network.
[100m Radius Coverage*] & [SIB9*, < 200ns precision ] In ideal environment.
